ESBA and ASBN invited to this European-wide Zoom-Meeting (2h), where we
- 2:28: introduced new member Pro Clima (presentation)
- 35:35: presented a summary of available certificates, proofs and workarounds for building straw bale houses in Building Class 1-4 (up to 13m height, multi-family and row house), by Herbert Gruber, ASBN
- 1:22:50: talked about News from member-countries (Spain, Estonia, UK, Germany, Austria), the Latin American Straw Building Network and Action Group Ukraine
Links mentioned in the presentation:

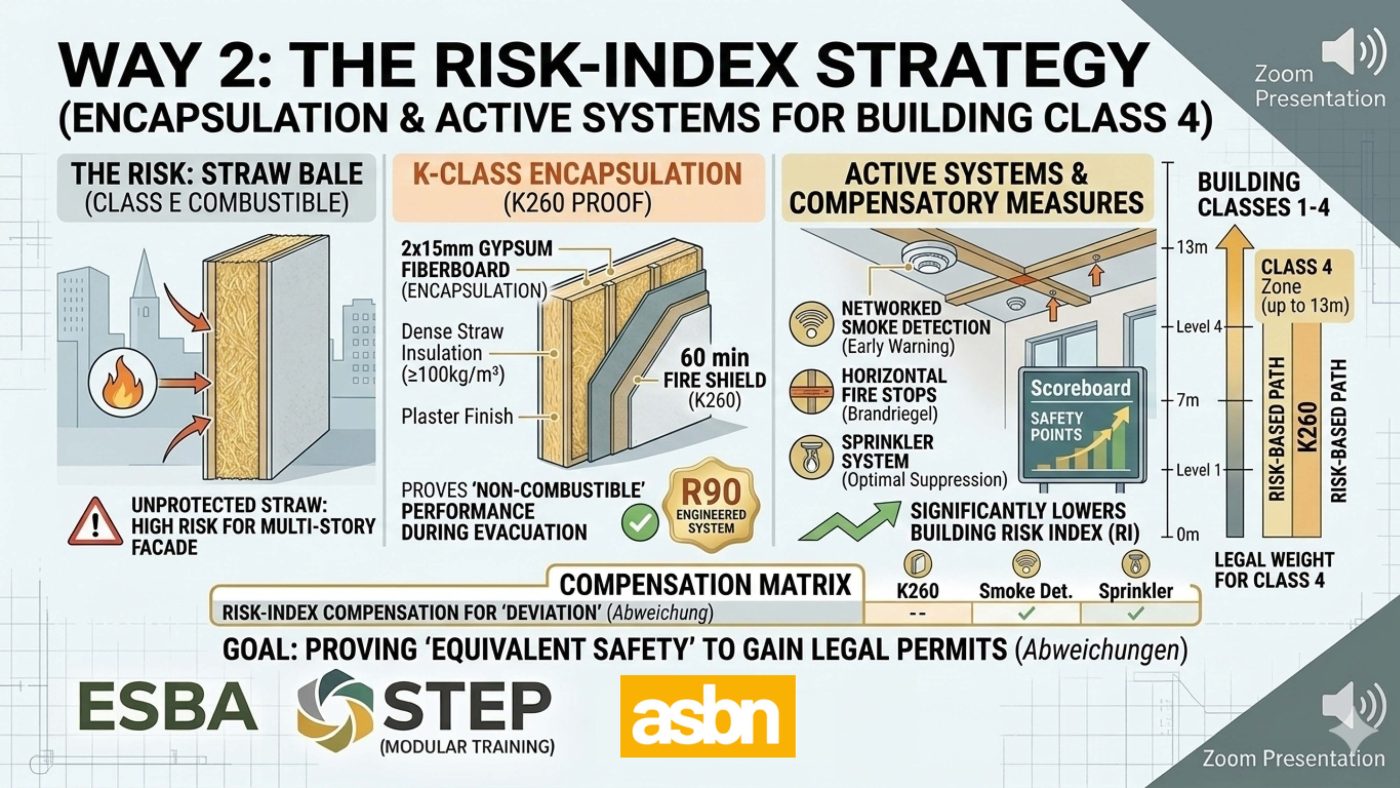

- (Way 2) TU Braunschweig: Risk-orientated fire safety solutions for multi-storey buildings made of timber (EN translation) – Risikogerechte Brandschutzlösungen für den mehrgeschossigen Holzbau (DE)

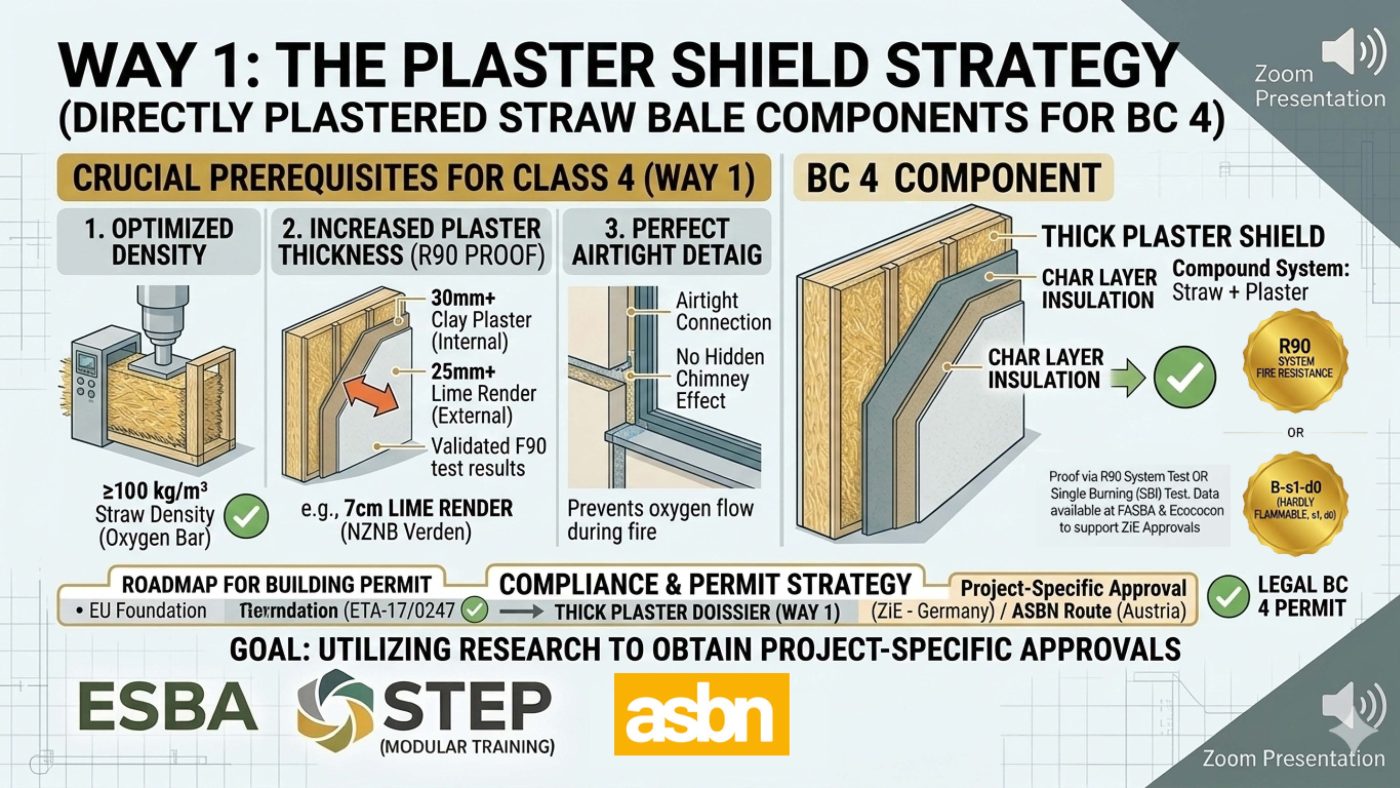

- (Way 1) Gesamtdokumentation des ZIM-Projekts “Direktverputzte Strohballenbauteile für die Gebäudeklasse 4” – Teilprojekt “Brandschutztechnische Untersuchungen” (DE) – Complete documentation of the ZIM project “Directly plastered straw bale components for building class 4” Subproject “Fire protection investigations” (EN translation)
- Form (draft): Summary of certificates and norms in Europe for Straw Bale Buildings in Building Class 1-4. To be completed by members of ESBA
Remark: Britta mentioned in the video, that there is no certificate from FASBA valid at the moment. This is only right for the F90 certificate, but there is a F30-certificate valid until 2029 (click on the screenshot or the links):
General Building Inspection Test Certificate (AbP): General Building Inspection Test Certificate, Fire Resistance Class F30-B (straw bale wall plastered on both sides with clay or lime) P-3048/817/08-MPA-BS, valid until 24 January 2029: Download
Expert opinion (AbP)Expert opinion on the General Building Inspection Test Certificate, fire resistance class F-30B (It may provide guidance on which deviations from the construction method may be considered minor by users.), valid until 27 June 2029: Download
European Certificates (full scale fire test) made by OSBN (Poland) for REI 90 (not connected to a special material-brand, so open to everybody in Europe), but with 40cm thick straw bale walls (below the whole report): In practice we would need to add 4cm of e.g. straw boards or wood fibre boards to the 36cm straw bales in a double-post timber-frame-construction.

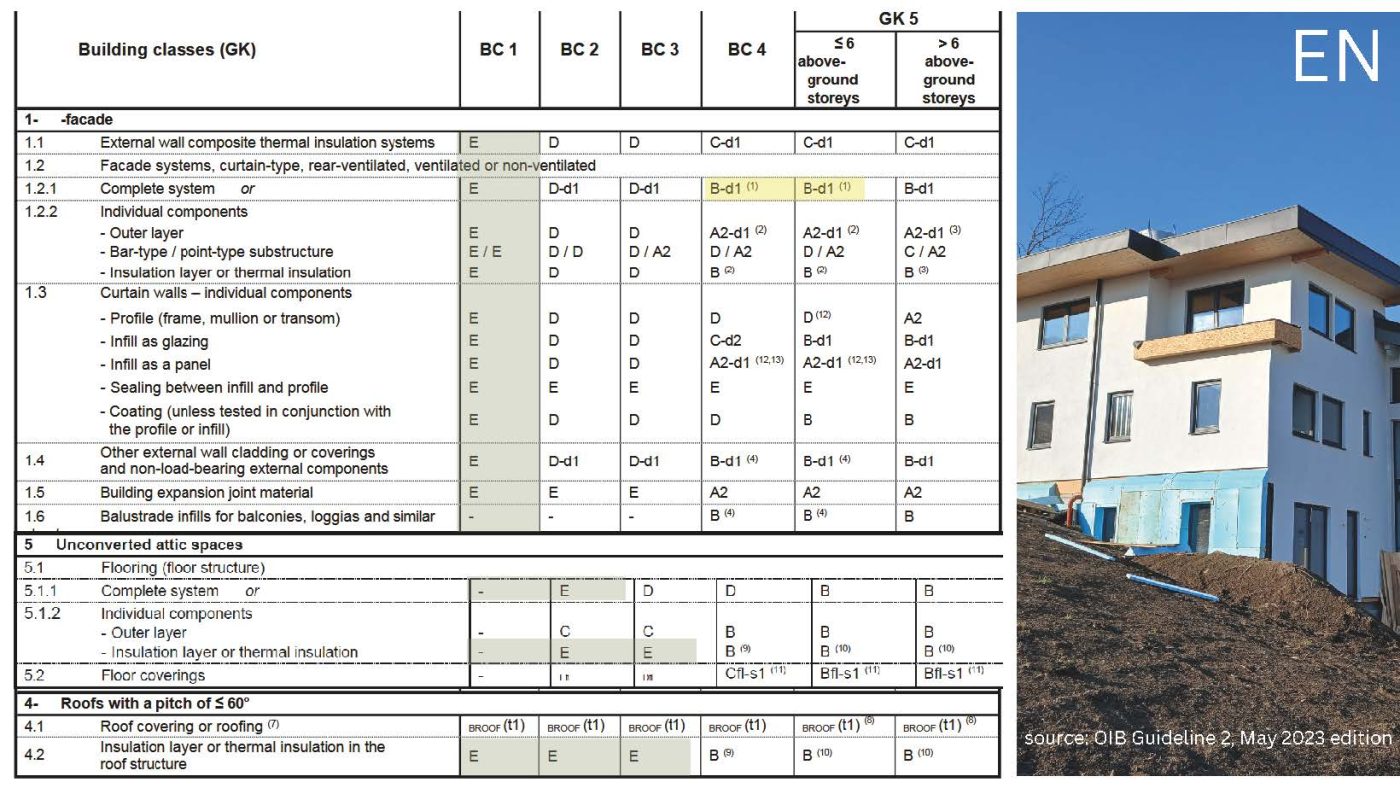

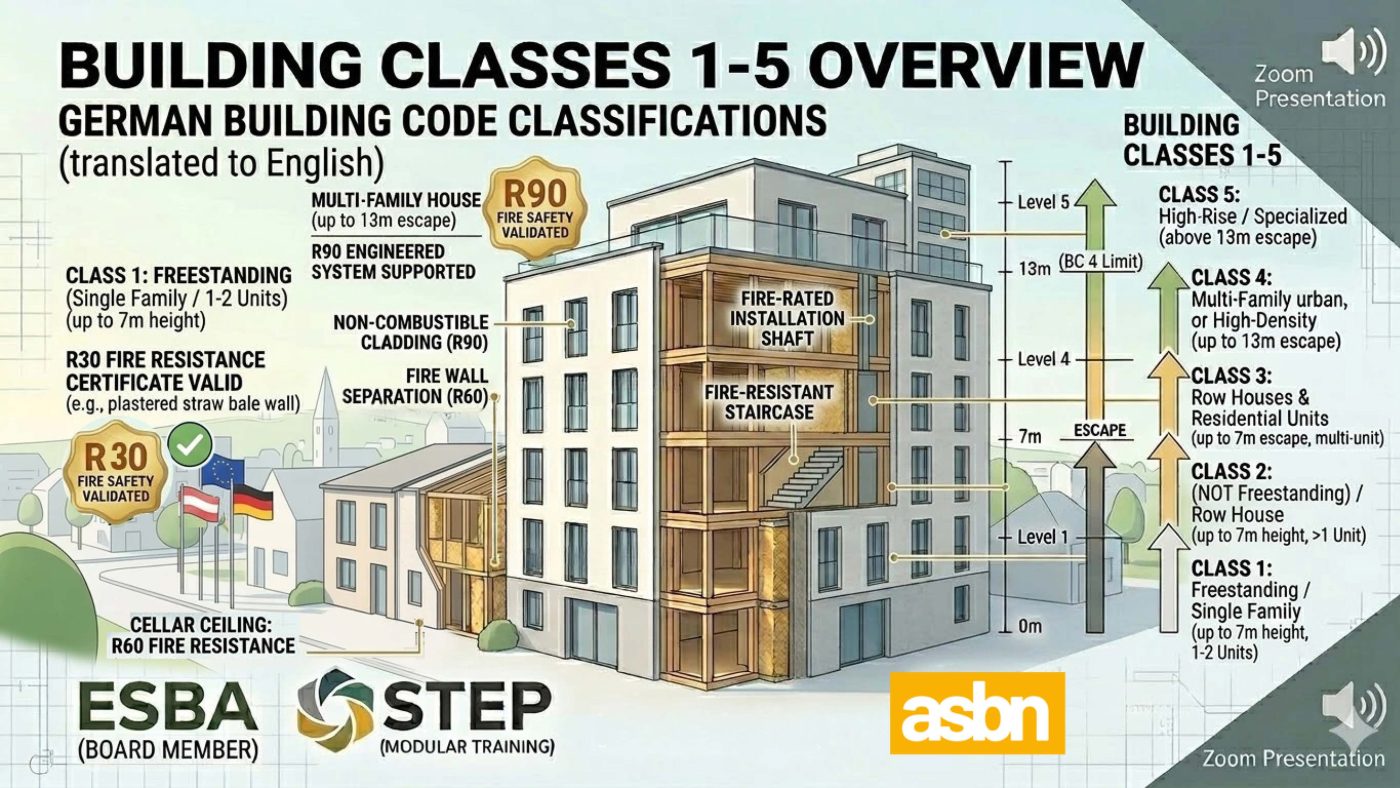

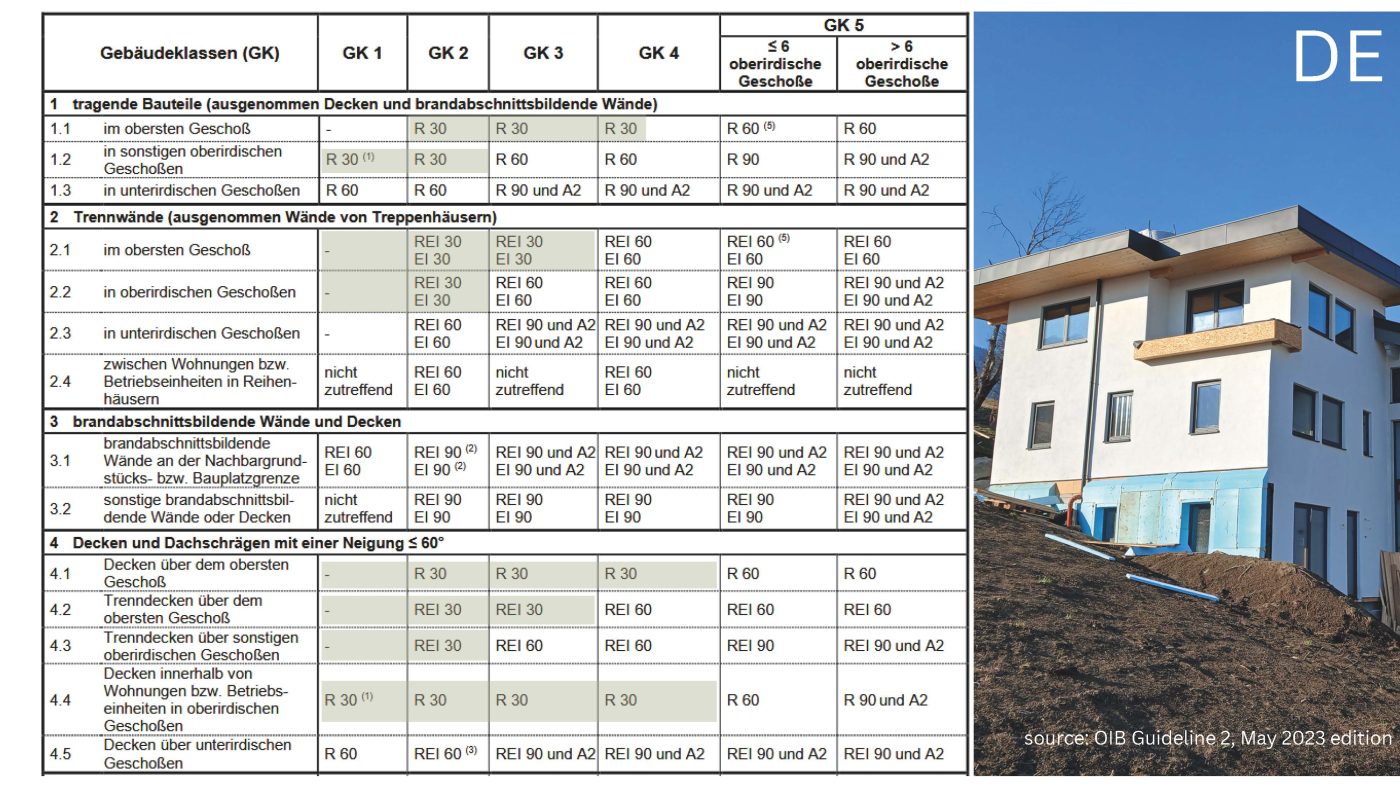

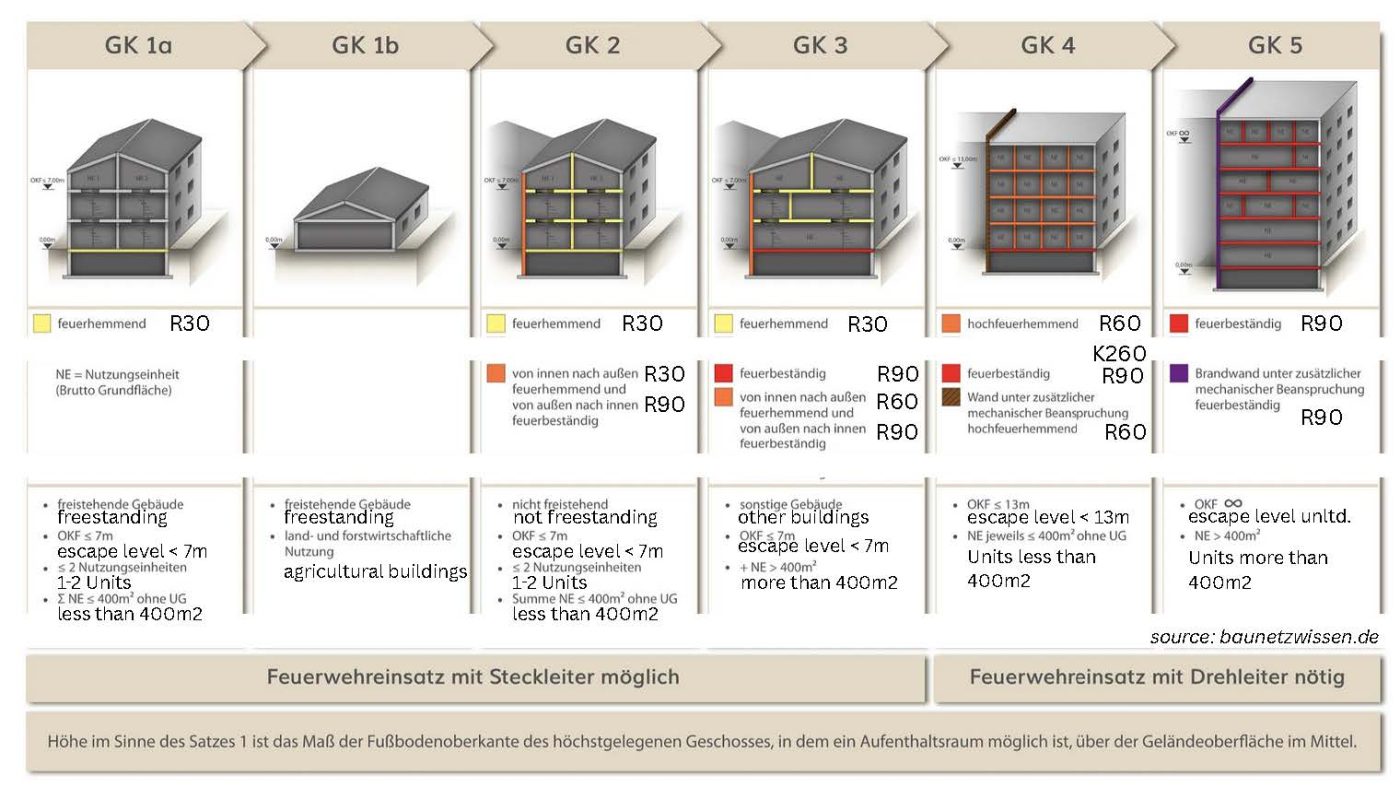

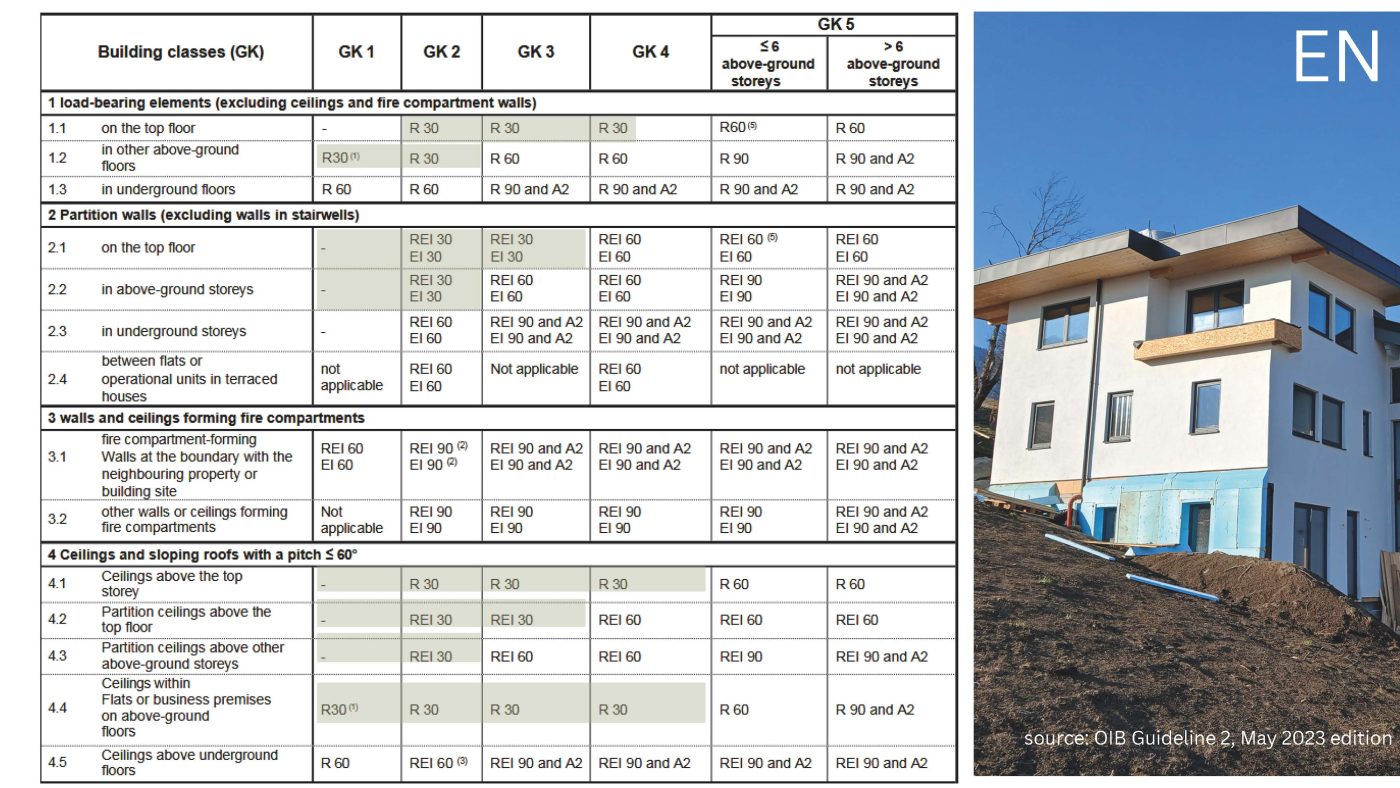

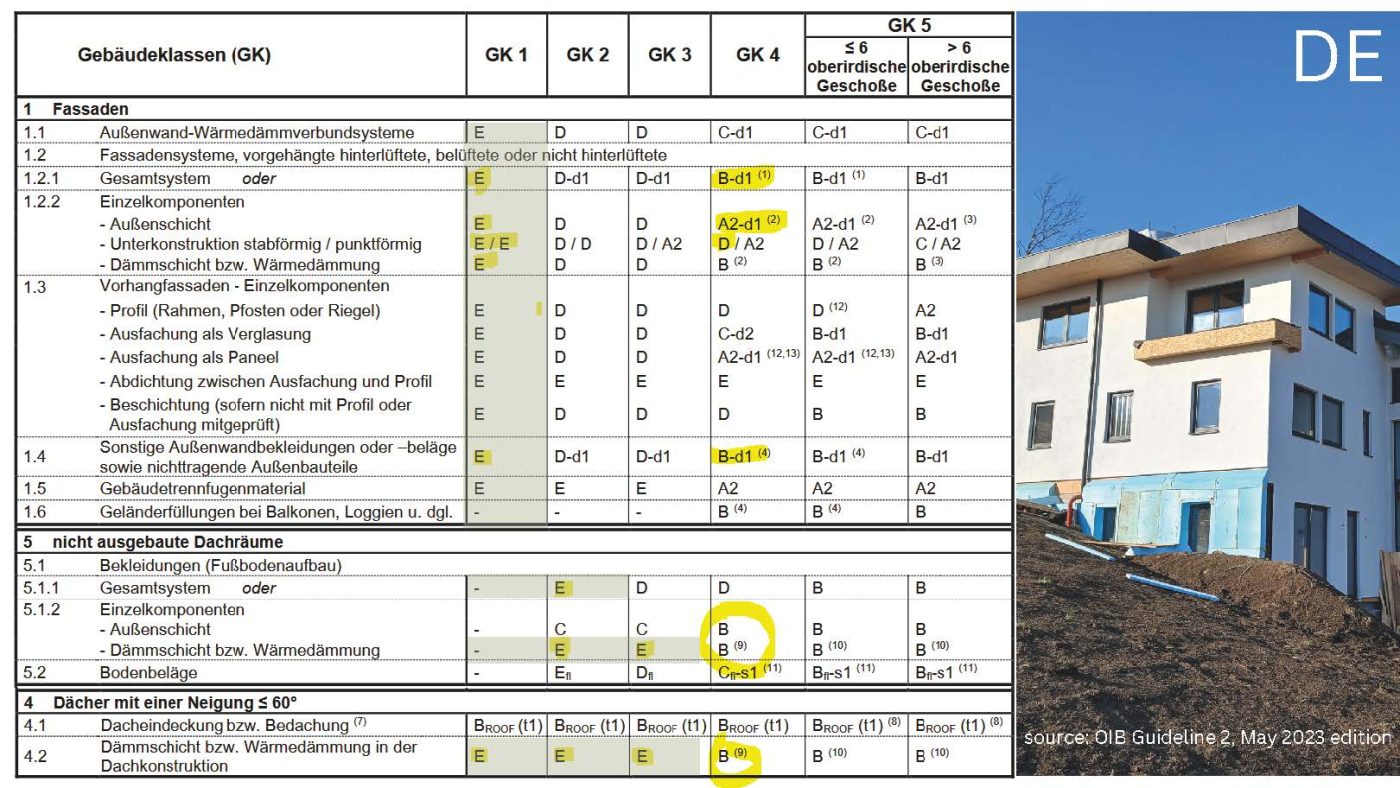

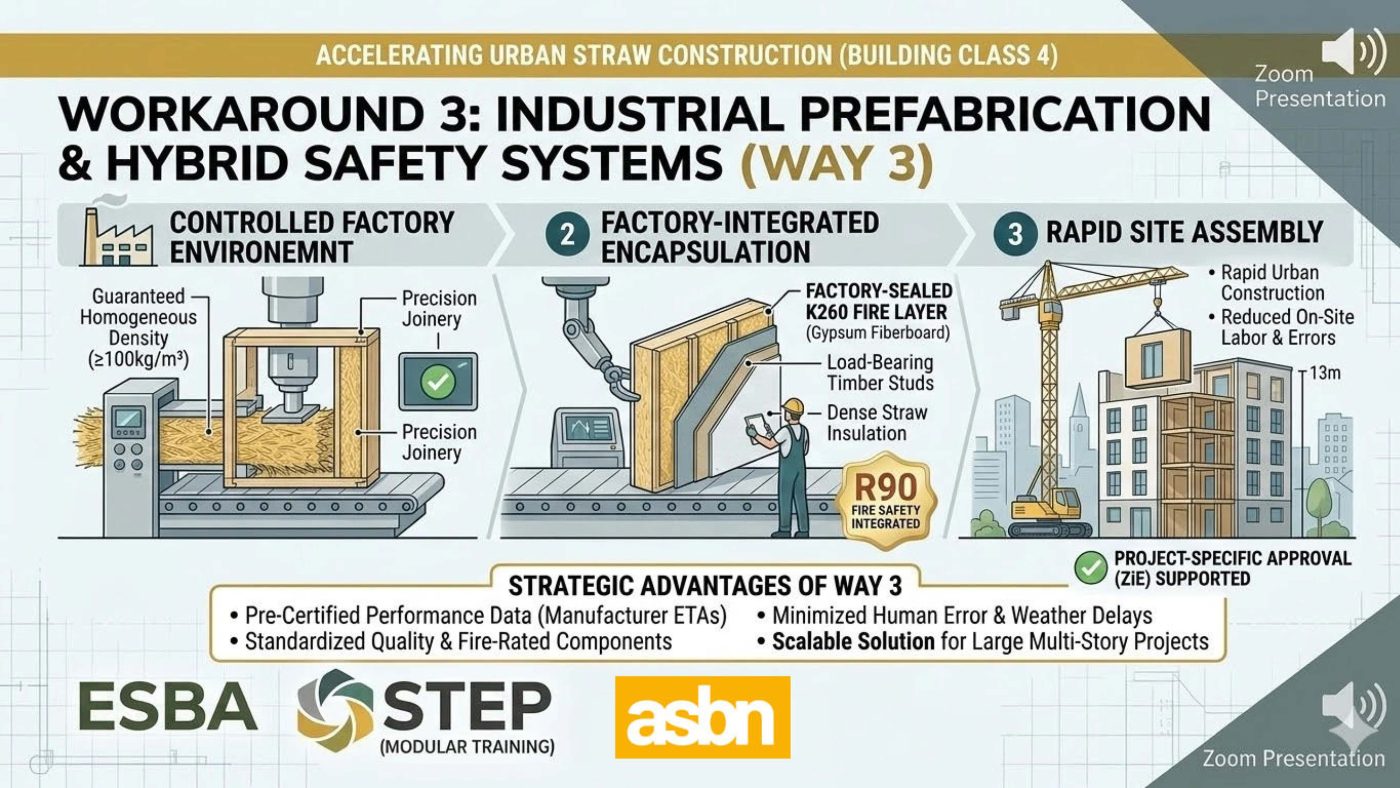

Slides shown in the presentation (Building Class 1-4):
–
